Globe valves

The GMI globe valve is used to control the flow of a fluid (gas or liquid). The GMI globe valve has a disc which moves linearly, in the direction of flow at the valve seats. Globe valves can be straight, slanted, or angled. External sealing is obtained using a stuffing box or a bellows.

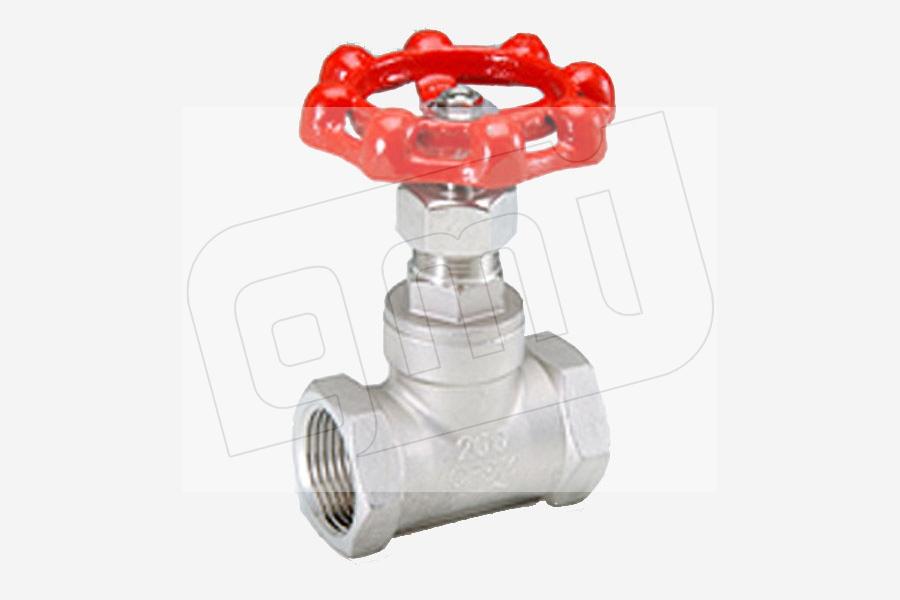

STILI® Globe valves

bronze brass gate valves Construction : Screwed in bonnet and union bonnet globe valves
Material : Brass, Bronze, Aluminium-bronze, Stainless steel
Class : PN16
Size : Up DN8 to DN50
End connections : Threaded: BSP, NPT
Flanges : PN10-16

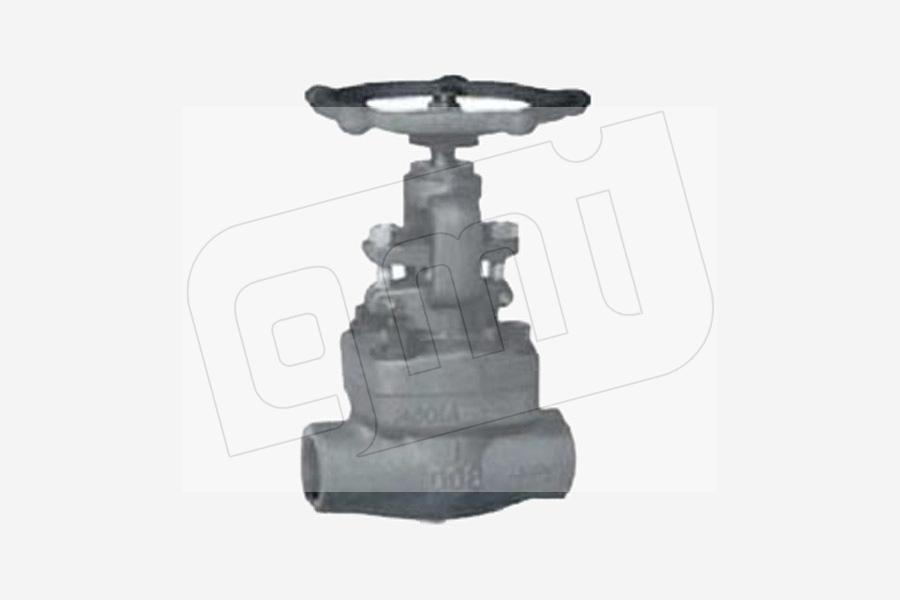

PRO-STILI® Forged Globe valves

forged globe valves Construction : Forged globe valve bolted bonnet or welded bonnet
Material : Carbon steel : A105…, Stainless steel: 316L-304L…, Special alloys...
Class : 800-1500-1500-2500lbs
Size : Up DN8 to DN50
End connections : Screwed NPT
Welded SW, BW
Between flanges PN20, PN50, PN100, PN150, PN250, PN420, Asa150, asa300, asa600, asa900, asa1500, asa2500
Full or reduce bore
API 602
ATEX

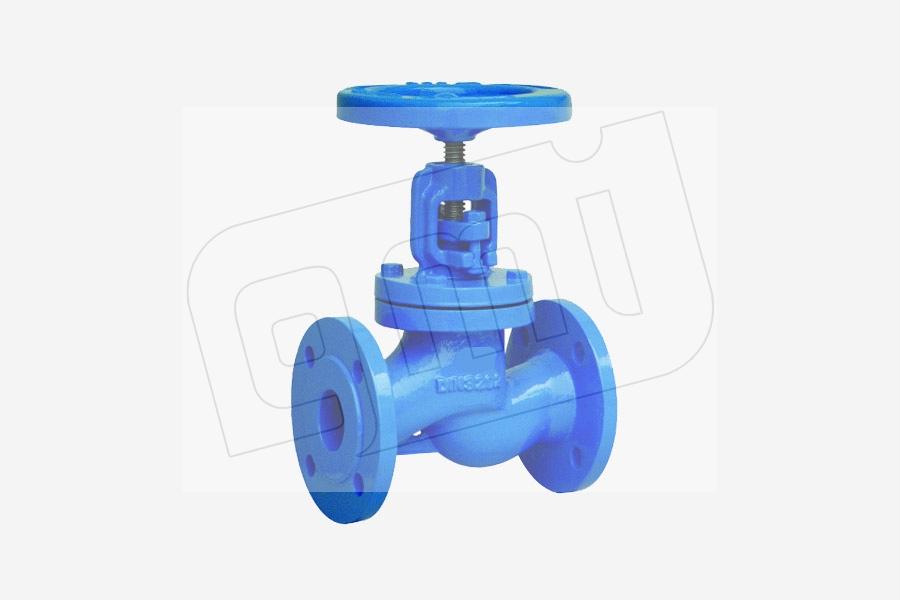

DINO-STILI® Cast Globe valves

din nfe cast globe valve Construction : Angle pattern, Y pattern and standard pattern
Materials : Carbon steel: GSC 25…, Stainless steel: 316…, Special alloys... ,Cast iron: GS...
Class : PN10, PN16, PN25, PN40, PN63, PN100, PN160
Sizes : Up DN50 to DN600
End connections : Flanges: PN10, PN16, PN25, PN40, PN63, PN100, PN160
Throttling plug, balancing plug
NFE cast globe valves design
DIN cast globe valves design
EN 13709 globe valve

DINO-STILI® Ansi Cast steel globe valves

ansi cast steel globe valves Construction : Bolted bonnet globe valves
Materials : Carbon steel: A216 WCB...., Stainless steel: 316L-A351 CF8M, Special alloys..
Class : Class 150, class 300, class 600, class 900, class 1500, class 2500
Sizes : Up DN50 to DN600
End Connections : Flanges 150lbs, 300lbs, 600lbs, 900lbs,1500 lbs, 2500 lbs Welded BW
Design and manufacture of product according to ANSI B 16.34 and API 600
ATEX

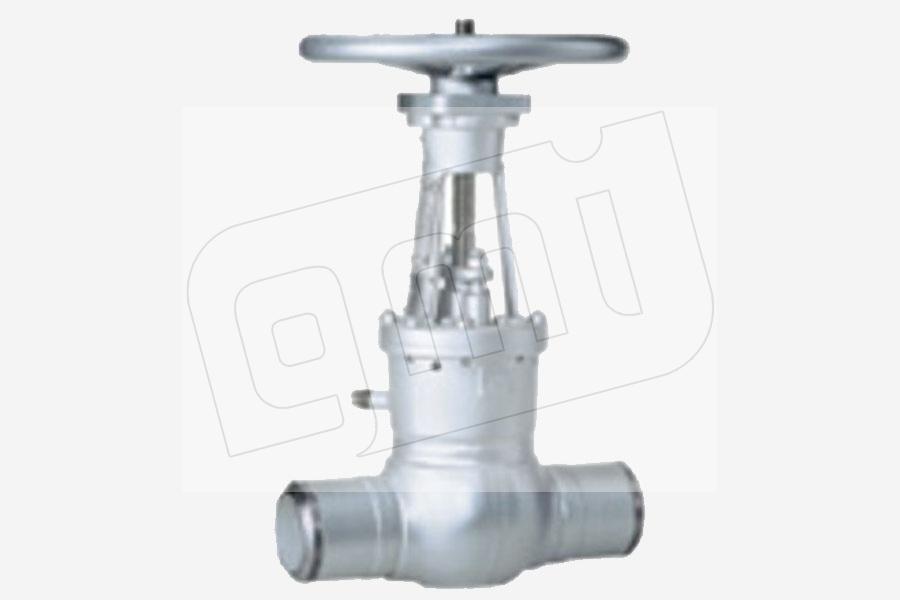

DINO-STILI® Pressure seal Globe valves

pressure seal globe valves Construction : Pressure seal Globe valves - Standard or Y pattern
Materials : Carbon steel: A216 WCB..., Stainless steel: 316L-A351 CF8M, Special alloys...
Class : class 600, class 900, class 1500, class 2500, class4500
Sizes : Up 2" (DN50) to 16" (DN400)
End Connections : Flanges: RF-RTJ -Welded: BW
Pressure seal globe valves API 600
ATEX
Our offer is drawn up to satisfy the specific operating conditions of your application. Our global offer is based on: -The construction of the globe valves: forged or cast. -The fine adjustment of these valves allows very precise flow control. -The valve design: straight, angled, or Y-shaped. -Operating pressure. -Operating temperature, -Compatibility of the body and seal materials with the fluid being conveyed.
