Electric actuators by GMI.

Electric actuators

GMI electric actuators allow the remote automatic control of valves. The electric command signal controls the opening and closing of valves.

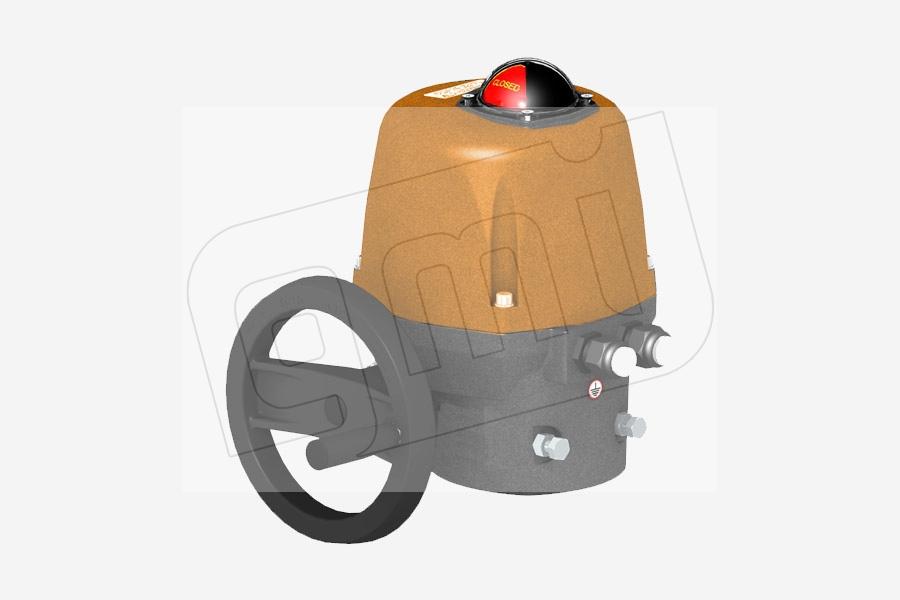

Quarter turn electric valve actuators - Serie A

Quarter turn electric actuators for valves Cover : Nylon plastic or aluminium
Torque : Up to 1000Nm
Enclosure : IP65, IP67, IP68
Tensions : CA : 230-110-24/50hz CC : 12-24
Fonction : On/ off or regulating
On request :
- Stainless steel cover
- Heating resistor
- Feedback potentiometer
- Manual override
-ATEX versions

Quarter turn electric valve actuators - Serie B

Quarter turn electric actuators  for industrial valves Cover : Aluminium
Torque : Up to 3000Nm
Enclosure : IP67, IP68
Tensions : CA : 400-230-110/50hz
Fonction : On/off or regulating
On request :
- Stainless steel cover
- Heating resistor
- Feedback potentiometer
- Manual override
-ATEX versions

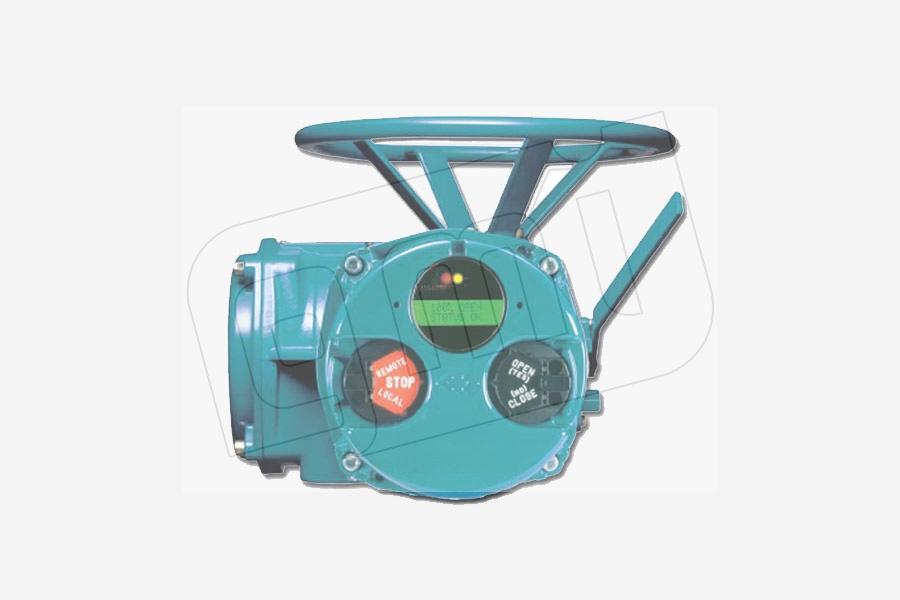

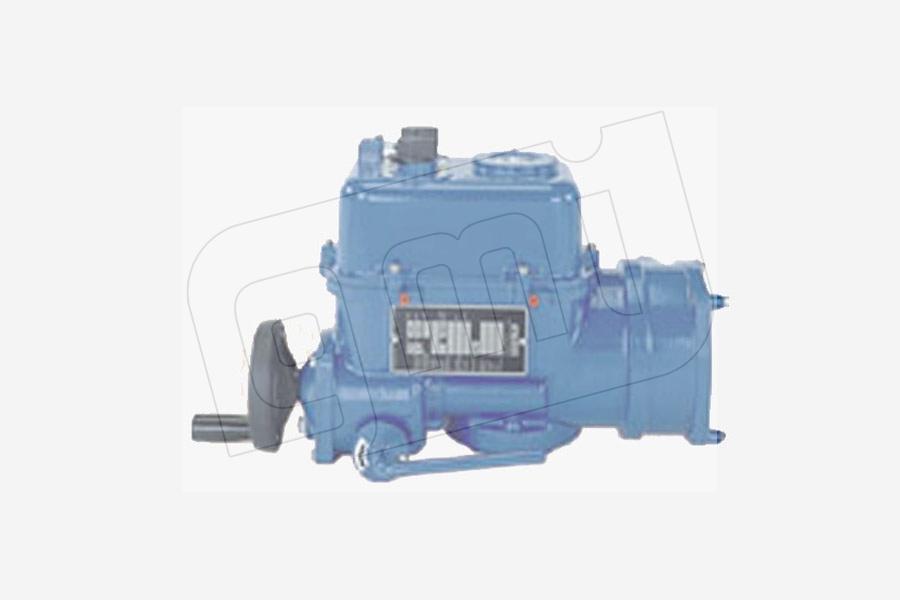

Multi-turn electric valve actuators

multi turn electric actuators for valves Cover : Aluminium
Torque : Up to 50000Nm
Enclosure : IP67, IP68
Tensions : Toutes
Fonction : Tout ou rien, Régulation
OPTIONS des motorisations électriques :
- Sécurité positive, rappel par ressorts
Our offer is drawn up to satisfy the specific operating conditions of your application. Our global offer is based on:
-The design of our electric motors for automatic valves.
-Possible use of return springs in the event of power failure.
-Default position: open or closed.
