Sight flow indicators

The purpose of the GMI sight flow indicator is to indicate the flow of a fluid in a pipe or tank. A visual determination of fluid flow is made either by transparency for coloured liquids or via a mechanical indicator such as a ball, a vane, etc.

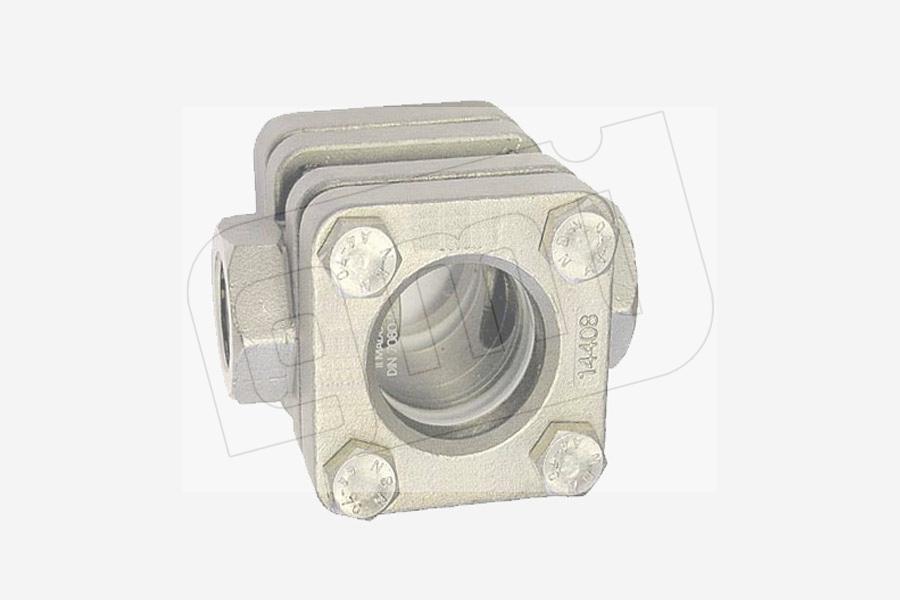

Threaded sight flow indicators

Threaded sight flow indicators Design : Rotating Vane, with Ball, with Flap, with Drip Tube...
Sight Glass : Hard glass or Borosilicate glass
Body : Brass, Bronze, Cast iron, Carbon steel, Stainless steel...
Sizes : Up DN15 to DN50
End connections : Threaded: BSP, NPT

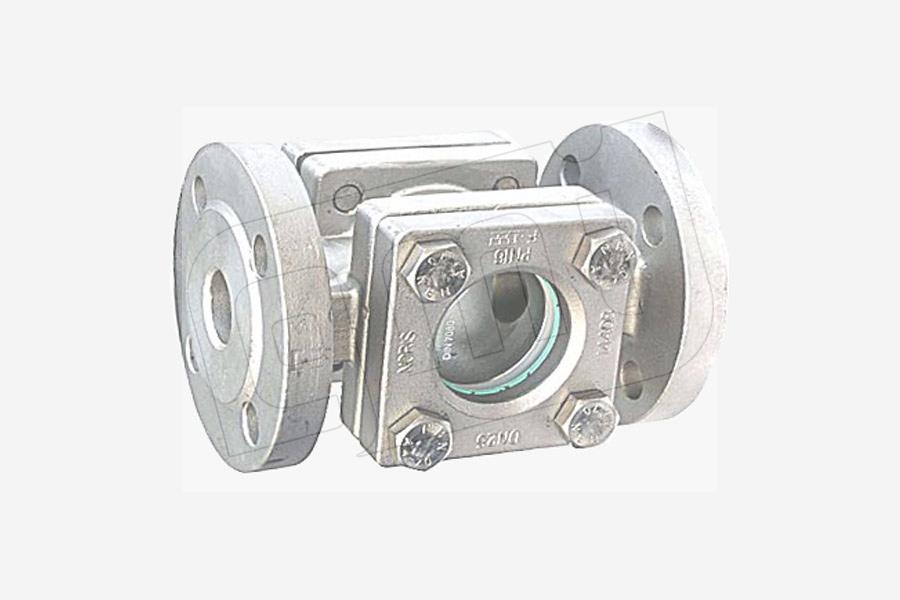

Flanged sight flow indicators

flanged sight flow glass indicators Design : Rotating Vane, with Ball, with Flap, with Drip Tube...
Sight Glass : Hard glass or Borosilicate glass
Body : Cast iron, Carbon steel, Stainless steel...
Sizes : Up DN15 to DN250
End connections : Threaded: BSP, NPT
Flanges: PN10, PN16, PN20, PN40, PN50
Asa 150, Asa 300...

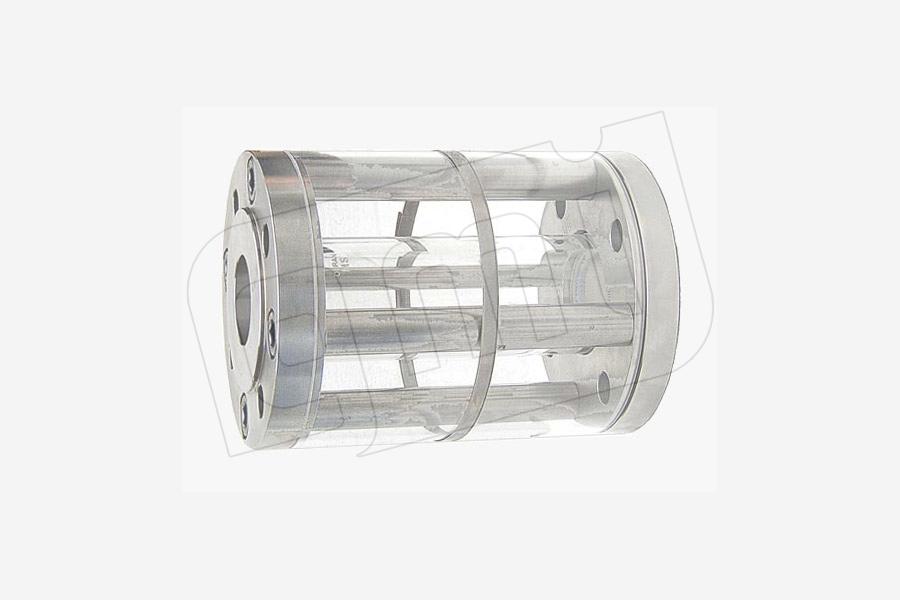

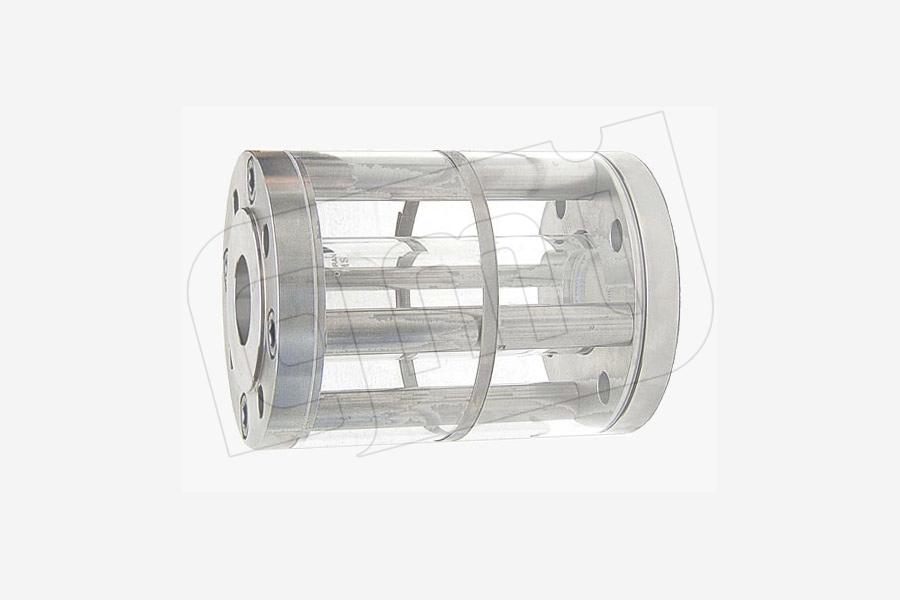

Tubular Sight Glass

Tubular Sight Glass Design : 360° all round view
Glass Tube : Borosilicate
End materials : Stainless steel...
Sizes : Up DN25 to DN200
End connections : Threaded: BSP, NPT
Flanges: PN10, PN16, PN20, Asa 150lbs
Welded: BW, SW
CLAMP

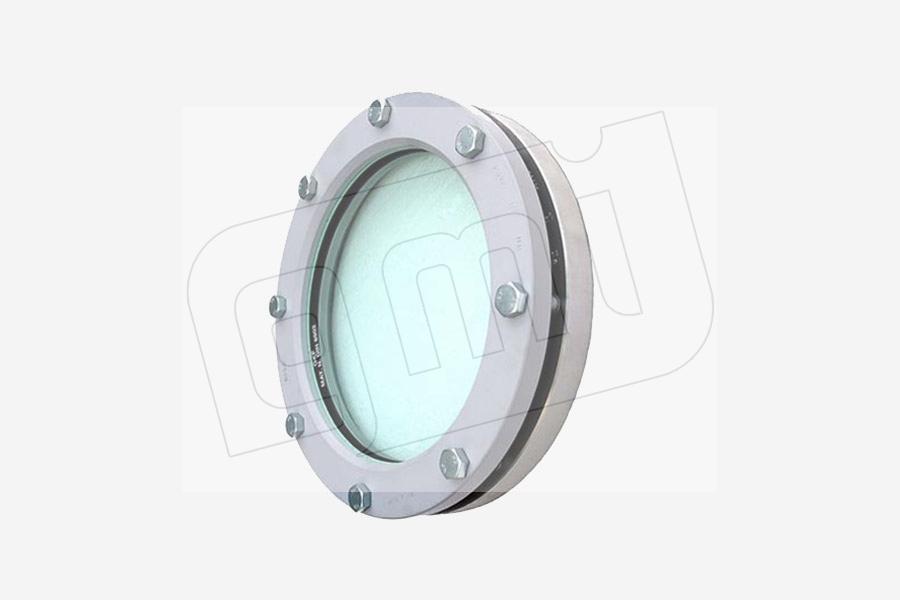

Circular Sightglass Fitting

Circular Sightglass Fitting Principe : Contrôle visuel par transparence
Sightglass disc : Glass and Borosilicate
Materials : Stainless steel...
Sizes : Up DN8 to DN200
End connections : Threaded: BSP, NPT
Flanged: PN10, PN16, PN20, PN50, Asa 150, Asa300 DIN 28121
Welding into or onto vessel walls DIN 28120
CLAMP
Normes de construction: DIN 28121,DIN28120 et DIN 11851
Nos voyants hublots permettent un montage sur tuyauterie, cuve, raccord...
Our offer is drawn up to satisfy the specific operating conditions of your application. Our global offer is based on:
-The construction of the sight flow indicator: optical, vane, ball, etc.
-Operating pressure,
-Operating temperature,
-Compatibility of the body and seal materials with the fluid being conveyed.
