Expansion joints

The GMI expansion joint is an important contributor to the protection of your installations. The purpose of the expansion joint is to compensate for mechanical variations in the pipes, whether these are caused by expansion or vibration. According to their construction, our metal or elastomer expansion joints can be used for axial, lateral, or angular movements.

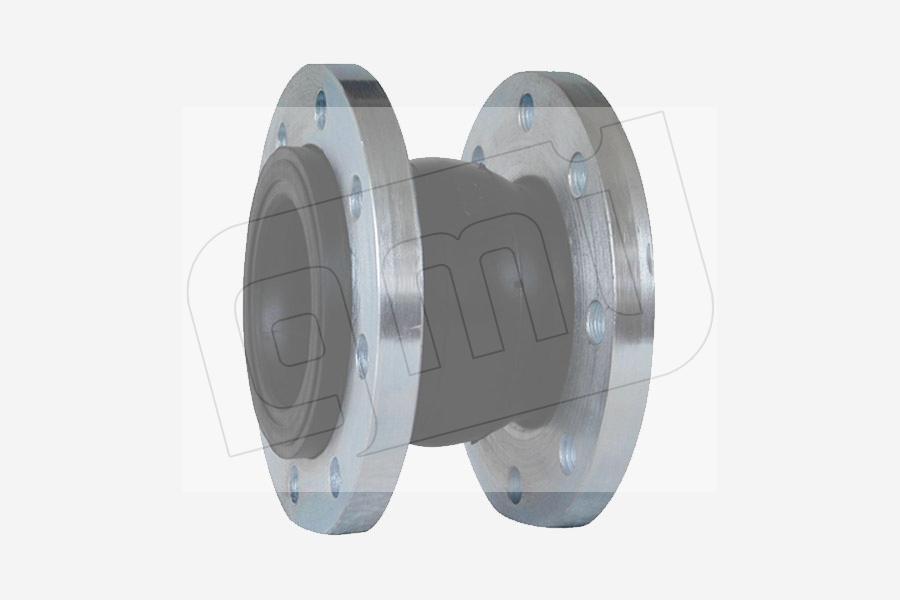

Rubber Expansion Joints

rubber expansion joints single or double sphere design Movement : Axial, Lateral, Angular and combined movements.
Body materials : Viton, Nitrile, Hypalon, PTFE, EPDM...
Flanges materials : Carbon steel, zinc plated and yellow chromated, Stainless steel...
Sizes : Up DN25 to DN3000
End connections : Threaded: BSP, NPT / Flanges: PN10, PN16, PN20, Asa 150
Lengths : 100-130-150-200-275-300mm selon les diamètres
On request
- Root rings for vacuum devise
- Tie rods set

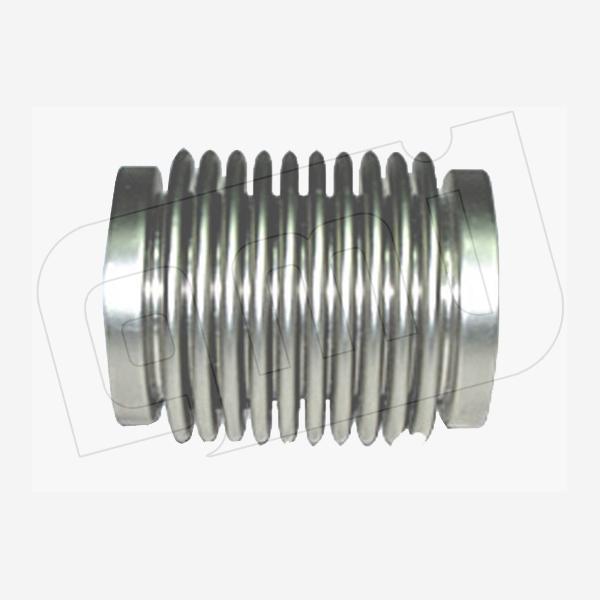

Metallic Expansion joints - Standard serie

standard metallic expansion joints Movement : It consists of a single bellows capable of absorbing axial movements and small lateral, angular, vibration and combined movements in a single plane.
Bellow materials : Stainless steel inner sleeve
End materials : Carbon steel, Stainless steel
Sizes : Up DN20 to DN300
End connections : Welded: BW
Flanfes : PN10, PN16, PN20, Asa 150
On request :
-Tie rods set
-Inner sleeve

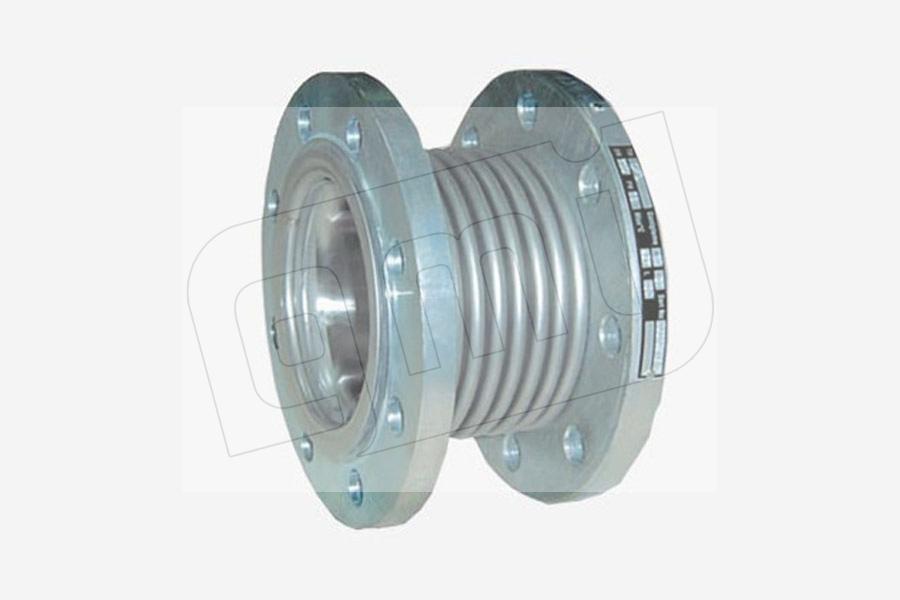

Axial metallic expansion joints

axial metallic expansion joints Construction : Designed and manufactured fully in accordance with CODAP - EJMA
Movement : Axial
Bellow materials : Stainless steel: 304-316, Avesta, Incoloy, Inconel, Hastelloy, Monel...

Bellow design : Multi-ply
End connections materials : Carbon steel, Stainless steel, Avesta, Incoloy, Inconel, Hastelloy, Monel...
Sizes : Up DN15 to DN12000
End connections : Welded: BW
Swivel lap-joint flanges or fixed flanges : PN1, PN2,5, PN6, PN10, PN16, PN25, PN40, PN63, Ansi150lbs, ansi 300lbs, ansi 600lbs, ansi 900lbs
With or without inner sleeve

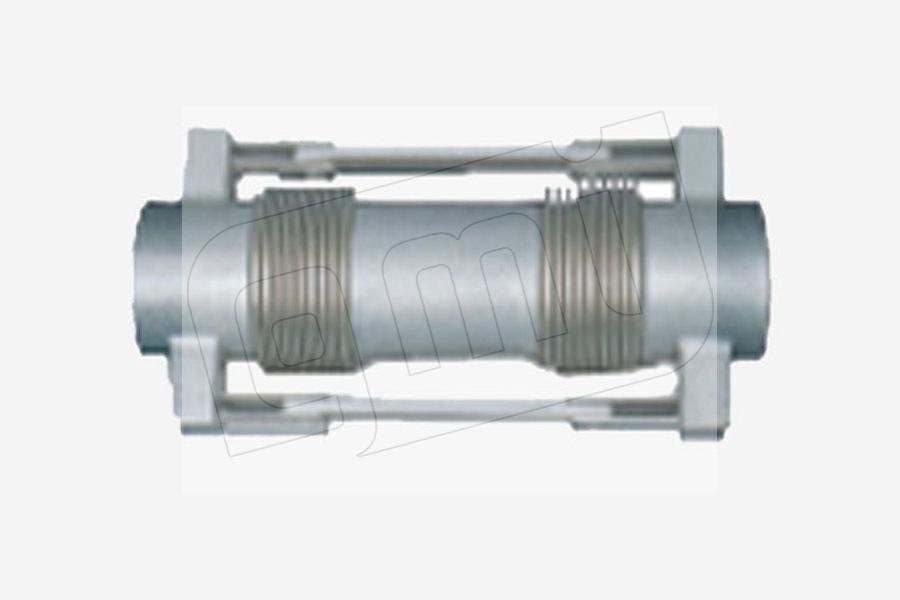

Lateral metallic expansion joints

Lateral metallic expansion joints Construction : Designed and manufactured fully in accordance with CODAP - EJMA
Movement : Lateral
Bellow materials : Stainless steel, Avesta, Incoloy, Inconel, Hastelloy, Monel...
Bellow design : Multi-ply
End connections materials : Carbon steel, Stainless steel, Avesta, Incoloy, Inconel, Hastelloy, Monel...
Sizes : Up DN15 to DN12000
End connections : Swivel lap-joint flanges or fixed flanges : PN1, PN2,5, PN6, PN10, PN16, PN25, PN40, PN63, Ansi150lbs, ansi 300lbs, ansi 600lbs, ansi 900lbs
* : Tie rods set on request
With or without inner sleeve .

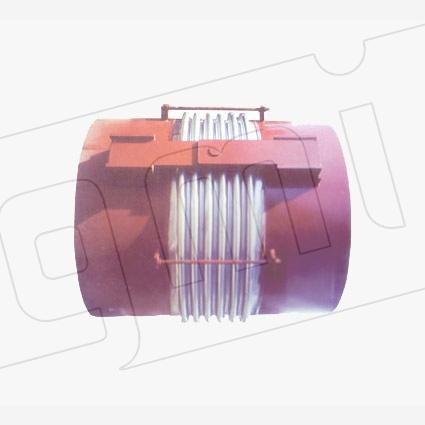

Angular metallic expansion joints

angular metallic expansion joints Construction : Designed and manufactured fully in accordance with CODAP - EJMA
Movement : Angular
Bellow materials : Stainless steel, Avesta, Incoloy, Inconel, Hastelloy, Monel...
Bellow design : Multi-ply
End connections materials : Carbon steel, Stainless steel, Avesta, Incoloy, Inconel, Hastelloy, Monel...
Sizes : Up DN15 to DN12000
End connections : Welded: BW
Swivel lap-joint flanges or fixed flanges : PN1, PN2,5, PN6, PN10, PN16, PN25, PN40, PN63, Ansi150lbs, ansi 300lbs, ansi 600lbs, ansi 900lbs
With or without inner sleeve .
Our offer is drawn up to satisfy the specific operating conditions of your application. Our global offer is based on: -the operation of the expansion joints or vibration compensators. -Compensators made of metal or elastomer. -Operating pressure, -Operating temperature, -Compatibility of the materials used for the waves and end fittings.
